SI Series ISO6431 Standard Cylinder SI Series ISO6431 Standard Cylinder

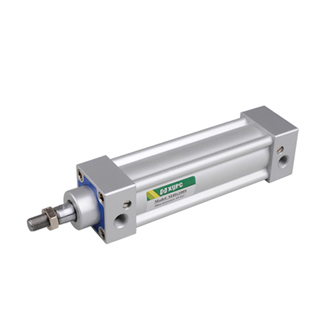

SI Series ISO6431 Standard Cylinder

Standard Features:

Specification

Model	32	40	50	63	80	100	125	160	200
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Basic type FA type FB type CA type CB ype LB type TC ype TC-M type
Operating Voltage Range	0.1~0.9 Kgf/cm²
Ensured Pressure Resistance	1.35 Kgf/cm²
Operating Temperature Range	-5~70℃
Operating Speed Range	50~800 mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24				32
Port Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"

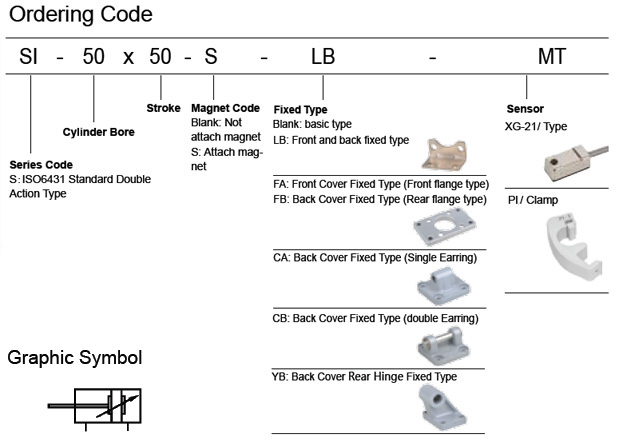

Ordering Code

Flow Chart

Bore (mm)	Standard Stroke	Max. Stroke	Permissible Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Cylinder theory output Sheet

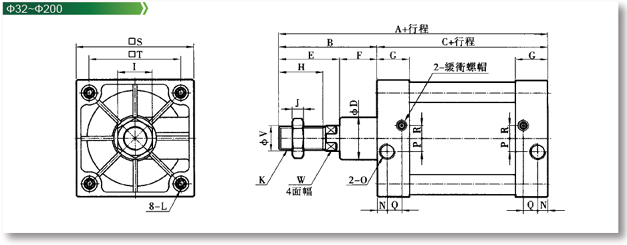

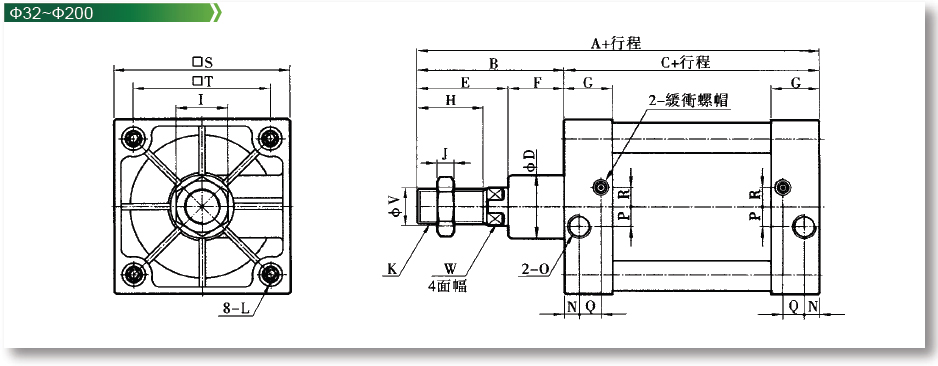

Overall Dimension

Bore/ Symbol	A	B	C	D	E	F	G	H	I	J	K	L
32	142	48	94	30	32	16	28	22	17	6	M10×1.25	M6
40	159	54	105	35	36	18	29	24	19	7	M12×1.25	M6
50	175	69	106	40	44	25	31	32	24	8	M16×1.5	M8
63	190	69	121	45	44	25	32	32	24	8	M16×1.5	M8
80	214	86	128	45	56	30	35	40	30	10	M20×1.5	M10
100	229	91	138	55	59	32	36	40	30	10	M20×1.5	M10
125	279	119	160	60	74	45	46	54	41	13.5	M27×2	M12
160	332	152	180	65	94	58	50	72	55	18	M36×2	M16
200	347	167	180	75	107	60	50	72	55	18	M36×2	M16

Bore/ Symbol	N	O	P	Q	R	S	T	V	W
32	13.5	1/8	4	7.5	7	47	32.5	12	10
40	16	1/4	6	9.5	9	53	38	16	13
50	18.5	1/4	8.5	6.7	9	65	46.5	20	17
63	19	3/8	6	7.7	9	75	56.5	20	17
80	19	3/8	10	5	13.5	95	72	25	22
100	18	1/2	12.5	10	14.5	115	89	25	22
125	23	1/2	14	12	14	140	110	32	27
160	25	3/4	15	12	20	180	140	40	36
200	25	3/4	15	12	20	220	175	40	36
